Product Description

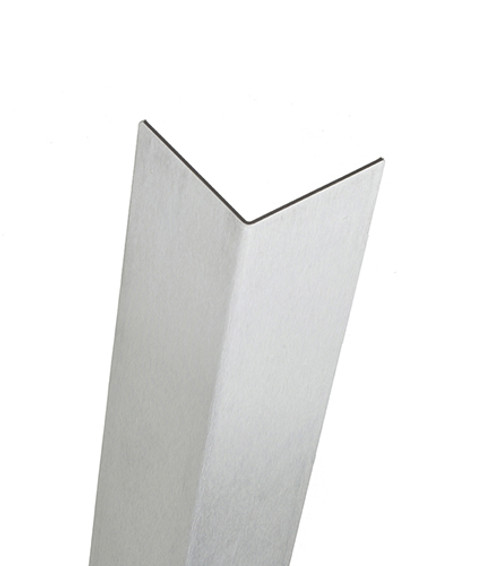

In Stock - Aluminum Corner Guard
94in x 3in x 3in (2438.4mm x 76.2mm x 76.2mm)
90 Degree, 080in, Type 5052, Brushed Finish
This aluminum corner guard protects outside wall corners from carts, dollies, equipment and everyday traffic in hospitals, schools, offices, warehouses and other commercial spaces. It's formed in one piece from .080in-thick Type 5052 aluminum with a #4 satin (brushed) finish: a lightweight, rigid metal that resists corrosion, with a brushed finish that blends into commercial interiors. At 94in long, it covers the corner up to 7 ft 10 in, which protects it from cart and equipment impacts as well as hands and shoulders. The wider 3in wings carry protection farther onto each wall, a good choice where carts or beds strike at an angle.
Features
- .080in-thick Type 5052 aluminum, factory-formed from a single sheet with a 1/8in radius corner
- #4 satin (brushed) finish
- 90° profile for standard square outside corners. 135° and custom angles are also available
- Mounting options: Basic (install with your own construction adhesive)
- Custom lengths and wing sizes, up to 120in in a single piece
- Lifetime warranty on the aluminum against defects in material and workmanship
Specifications
| Length | 94in (2387.6mm) |
| Wings | 3in x 3in (76.2mm x 76.2mm) |
| Angle | 90° |
| Material | Type 5052 aluminum, .080in |
| Finish | #4 satin (brushed) |
| Corner radius | 1/8in (3.2mm) |
| Mounting | Basic (customer-supplied adhesive) |
| CSI section | 10 26 13 Corner Guards |
Installation & Ordering
The Basic option installs with construction adhesive you supply (such as Liquid Nails), applied in a zig-zag pattern on each inside wing. Over vinyl wall coverings, trim a strip of the vinyl under each wing so the adhesive bonds to the wall. Clean it with warm water and mild soap, then wipe dry. Step-by-step instructions are in the Documentation section below. Lead time: For orders placed by Noon - 12pm CST, ships within 1-3 Business Days (Limit 25 Per Order). Questions? Call 800-516-4036. Bulk pricing applies automatically in the cart: 10% off 20–49, 15% off 50+.
