Custom Height × Door Width, .040in or .060in Thick PVC-Free Acrovyn® Suede Texture Door Cladding, L-Shape 90-Degree Profile for Face & Edge Protection – CS Group
Resilient Acrovyn® door cladding provides a cost-effective way to protect interior doors in high-traffic areas.
Advantages
- Reduces the need for constant repair, which takes time and can be costly, extending the life-cycle of the door
- Available in all standard Acrovyn solid colors, woodgrains and brushed metals to help coordinate with your interior design scheme
Building Segments
- Healthcare
- Senior Living
- Education
- Hospitality
- Retail
- Sports & Entertainment
- Aviation & Transportation
Applications
- Areas requiring low-cost protection for interior doors against daily wear and tear, including back-of-house, hallways, conference spaces, etc.
Product Details
- PVC-free Acrovyn in suede texture
- Specify .040" (1.02mm) or .060" (1.52mm) thickness
- Maximum door width of 46¼" (1.2m)
- Partial heights available

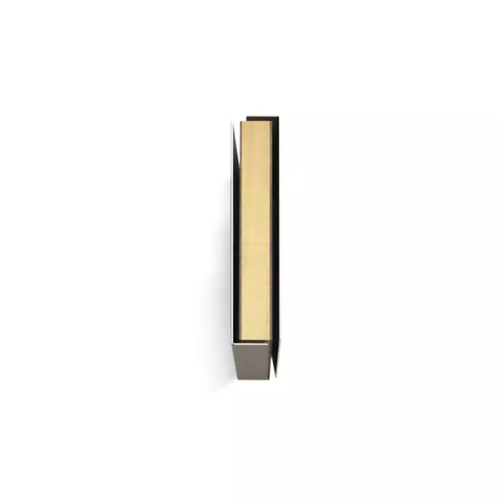

- Supplied in L shape (with 90-degree angle) to cover face and edge of the door
- Supplied in L shape (with 90-degree angle) to cover face and edge of the door
- Two pieces must be ordered to protect the entire door
- Applied with adhesive or self-adhesive tape
- Fire-rating heat stamp located on face of cladding; can be specified without stamp
- Specify angle between 80-100˚ if other than 90˚
- Model: Specify 3-DPN
Certifications / Testing
- Resistant to certain bacterial & fungal growth (per ASTM G 22-76 & G 21-96)
- Chemical resistant (per ASTM D543-06)
- Taber abrasion resistant (per ASTM D 4060-07) (suede & shadowgrain textures only)
- Fire test standards: UL-10C (Acrovyn models only)
Specifications
Product Information
- Product Sheet: Door Cladding
- Testing Data: Acrovyn 4000 Wall Covering Physical Properties
- Testing Data: Acrovyn Chemical Resistance
- Testing Data: Acrovyn Door and Frame Cladding DFP and D1
- Testing Data: Acrovyn Fungal Resistance Testing
- Testing Data: Acrovyn Stain Resistance and Cleanability
- Testing Data: Acrovyn Taber Abrasion Testing Suede
- Testing Data: Acrovyn Wall Covering Impact Testing
- Testing Data: Acrovyn Wall Protection CA-10105-2023b
- Testing Data: Bacterial Resistance Testing
Testing & Safety
Installation & Maintenance
BIM & CAD Models
-
