Product Description
Anodized Aluminum Corner Guard
24in x 0.5in x 0.5in (609.6mm x 12.7mm x 12.7mm)
135 Degree, 080, Type 5005, Satin #4 (Brushed) Finish

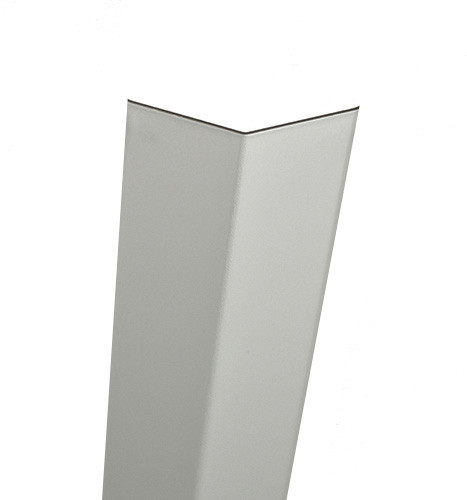

This anodized aluminum corner guard protects outside wall corners from carts, dollies, equipment and everyday traffic in hospitals, schools, offices, warehouses and other commercial spaces. It's formed in one piece from .080in-thick Type 5005 pre-anodized aluminum with a #4 satin, clear anodized finish: lightweight, with an anodized surface that resists corrosion and wear. At 24in long, it protects the lower part of the corner, where it sits above a wall base or covers one spot that keeps getting hit. The 0.5in wings keep a low, discreet profile on the wall.
Features
- .080in-thick Type 5005 pre-anodized aluminum, factory-formed from a single sheet with a 1/8in radius corner
- #4 satin, clear anodized finish. It ships with a protective film you peel off after installation
- 135° profile for angled outside corners. 90° and custom angles are also available
- Mounting options: Basic (install with your own construction adhesive)
- Edge options: Rounded Corners
- Custom lengths and wing sizes, up to 144in in a single piece
- Lifetime warranty on the aluminum against defects in material and workmanship
Specifications
| Length | 24in (609.6mm) |
| Wings | 0.5in x 0.5in (12.7mm x 12.7mm) |
| Angle | 135° |
| Material | Type 5005 pre-anodized aluminum, .080in |
| Finish | #4 satin, clear anodized |
| Corner radius | 1/8in (3.2mm) |
| Mounting | Basic (customer-supplied adhesive) |
| CSI section | 10 26 13 Corner Guards |
Installation & Ordering
The Basic option installs with construction adhesive you supply (such as Liquid Nails), applied in a zig-zag pattern on each inside wing. Over vinyl wall coverings, trim a strip of the vinyl under each wing so the adhesive bonds to the wall. Clean it with warm water and mild soap, then wipe dry. Step-by-step instructions are in the Documentation section below. Standard lead time is about 6–8 business days. If you need guards sooner, see our Ships Today category or call 800-516-4036.
