NOTE: This product is not returnable.
This brass corner guard protects outside wall corners from carts, dollies, equipment and everyday traffic in hospitals, schools, offices, warehouses and other commercial spaces. It's formed in one piece from .040in-thick unlacquered Muntz brass with a #8 mirror (polished) finish: a polished, warm metal for lobbies, hospitality and historic interiors. At 94in long, it covers the corner up to 7 ft 10 in, which protects it from cart and equipment impacts as well as hands and shoulders. The 0.75in wings keep a low, discreet profile on the wall.
Features
- .040in-thick unlacquered Muntz brass, factory-formed from a single sheet with a 1/8in radius corner
- #8 mirror (polished) finish. It ships with a protective film you peel off after installation
- 135° profile for angled outside corners. 90° and custom angles are also available
- Mounting options: Basic (install with your own construction adhesive)
- Edge options: Rounded Corners
- Custom lengths and wing sizes, up to 144in in a single piece
- Lifetime warranty on the brass against defects in material and workmanship
Specifications
| Length | 94in (2387.6mm) |
| Wings | 0.75in x 0.75in (19mm x 19mm) |
| Angle | 135° |
| Material | unlacquered Muntz brass, .040in |
| Finish | #8 mirror (polished) |
| Corner radius | 1/8in (3.2mm) |
| Mounting | Basic (customer-supplied adhesive) |
| CSI section | 10 26 13 Corner Guards |
Installation & Ordering
The Basic option installs with construction adhesive you supply (such as Liquid Nails), applied in a zig-zag pattern on each inside wing. Over vinyl wall coverings, trim a strip of the vinyl under each wing so the adhesive bonds to the wall. Clean it with warm water and mild soap, then wipe dry. Unlacquered brass develops a natural patina over time. That is normal for the metal and is not covered by the warranty. Step-by-step instructions are in the Documentation section below. Standard lead time is about 6–8 business days. If you need guards sooner, see our Ships Today category or call 800-516-4036.
Product Description

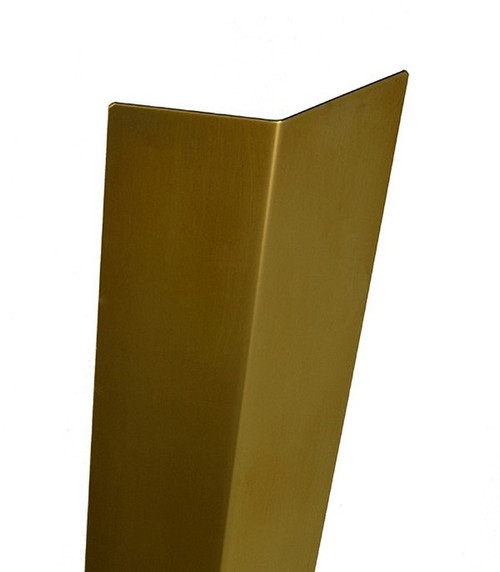

Brass Corner Guard
94in x 0.75in x 0.75in(2438.4mm x 19.05mm x 19.05mm)
135 Degree, 40, Unlacquered, Polished #8 (Mirror) Finish
Documentation
Note on Unlacquered Brass
Our brass products are unlacquered, meaning they are left in their natural state without a clear protective coating. Unlike lacquered brass, which is sealed to maintain a uniform, polished appearance, unlacquered brass will naturally age and develop a patina.
-
Description
NOTE: This product is not returnable.
This brass corner guard protects outside wall corners from carts, dollies, equipment and everyday traffic in hospitals, schools, offices, warehouses and other commercial spaces. It's formed in one piece from .040in-thick unlacquered Muntz brass with a #8 mirror (polished) finish: a polished, warm metal for lobbies, hospitality and historic interiors. At 94in long, it covers the corner up to 7 ft 10 in, which protects it from cart and equipment impacts as well as hands and shoulders. The 0.75in wings keep a low, discreet profile on the wall.
Features
- .040in-thick unlacquered Muntz brass, factory-formed from a single sheet with a 1/8in radius corner
- #8 mirror (polished) finish. It ships with a protective film you peel off after installation
- 135° profile for angled outside corners. 90° and custom angles are also available
- Mounting options: Basic (install with your own construction adhesive)
- Edge options: Rounded Corners
- Custom lengths and wing sizes, up to 144in in a single piece
- Lifetime warranty on the brass against defects in material and workmanship
Specifications
Length 94in (2387.6mm) Wings 0.75in x 0.75in (19mm x 19mm) Angle 135° Material unlacquered Muntz brass, .040in Finish #8 mirror (polished) Corner radius 1/8in (3.2mm) Mounting Basic (customer-supplied adhesive) CSI section 10 26 13 Corner Guards Installation & Ordering
The Basic option installs with construction adhesive you supply (such as Liquid Nails), applied in a zig-zag pattern on each inside wing. Over vinyl wall coverings, trim a strip of the vinyl under each wing so the adhesive bonds to the wall. Clean it with warm water and mild soap, then wipe dry. Unlacquered brass develops a natural patina over time. That is normal for the metal and is not covered by the warranty. Step-by-step instructions are in the Documentation section below. Standard lead time is about 6–8 business days. If you need guards sooner, see our Ships Today category or call 800-516-4036.
Product Description
Brass Corner Guard
94in x 0.75in x 0.75in(2438.4mm x 19.05mm x 19.05mm)
135 Degree, 40, Unlacquered, Polished #8 (Mirror) FinishDocumentation
Note on Unlacquered Brass
Our brass products are unlacquered, meaning they are left in their natural state without a clear protective coating. Unlike lacquered brass, which is sealed to maintain a uniform, polished appearance, unlacquered brass will naturally age and develop a patina.
